1008F-1R8K-08 | Fastron
RF choke, SMD 1008, 1.8 µH, 600 mA, 1008F-1R8K-08
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3808 €
100 pcs.
0.3213 €
500 pcs.
0.2856 €
1000 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale

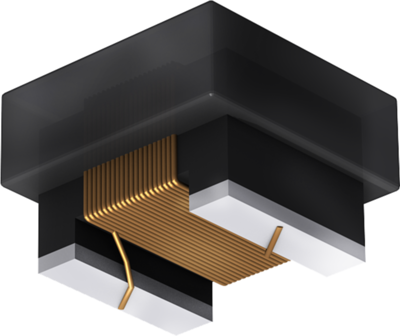

Chip inductor for RF applications, type Fastron 1008F.
Size 1008, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 600 mA | |
| DC resistance | 0.84 Ω | |
| Quality Q | Q 25 | |
| Measuring frequency | 7.9 MHz | |
| Tolerance | ±10 % | |
| Length | 2.9 mm | |
| Height | 2.1 mm | |
| Width | 2.8 mm | |
| Inductance | 1.8 µH | |
| Design | SMD 1008 | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bulk with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
