0603AS-4N7K-08 | Fastron

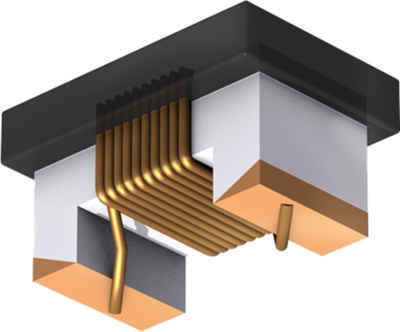

RF choke, SMD 0603, 4.7 nH, 700 mA, 0603AS-4N7K-08
Unit Price (€ / pc.)
0.2380 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2380 €
10 pcs.
0.2142 €
100 pcs.
0.1785 €
500 pcs.
0.1547 €
1000 pcs.
0.1428 €
*incl. VAT plus shipping costs
Subject to prior sale
RF inductor, 0603AS-4N7K-08, FASTRON
The 0603AS-4N7K-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication
Technical specifications
| Measuring frequency | 250 MHz | |
| Design | SMD 0603 | |
| DC current | 700 mA | |
| Quality Q | Q 25 | |
| Inductance | 4.7 nH | |
| Version | RF choke | |

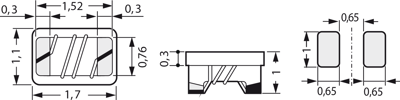

| Length | 1.7 mm | |
| Tolerance | ±10 % | |
| Height | 1 mm | |
| DC resistance | 70 mΩ | |
| Width | 1.1 mm |
Download
Logistics
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
