Fastron

0603AS-047J-08 | Fastron

RF choke, SMD 0603, 47 nH, 600 mA, 0603AS-047J-08

default S
front S
default L
front L
Total price
(0.29 € * / pcs.)
5.83 €
Available: 1,879 pcs.
Quantity
Price per unit*
20 pcs.
0.29 €
100 pcs.
0.24 €
500 pcs.
0.20 €
2000 pcs.
0.18 €
4000 pcs.
0.17 €
*incl. VAT plus shipping costs
Show 134 variants
Description

Product by Fastron at Bürklin Elektronik

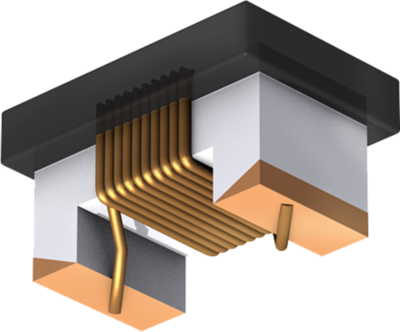

SMD-Inductor, 0603AS-047J-08, Fastron

The 0603AS-047J-08 is used as energy storage devices in switched-mode power devices to produce DC current.

Features

  • FASTRON Wire wound chip inductors are designed particularly for RF applications that require optimal Q on high frequency circuits
  • Its gold flash pad metallization provides better solderability for a higher yield in your production
  • In addition, their encapsulation not only protects the winding but also allows surface mount assembly
  • It comes in compact sizes (from 0402 to 1812) available in reel packing

Applications

  • Used in LC resonant circuits such as oscillator and signal generators, impendance matching, RF filters etc.
  • Mobile Telecommunication: GSM, CDMA, TCDMA, cordless phones, 2 way radio
  • Automotive Subsystems: TPMS, Keyless Entry, Anti-Theft, GPS
  • Wireless Communication: W-LAN, WIFI, WIMAX, RFID, Bluetooth
  • Non-magnetic versions for medical imaging applications: ASM series

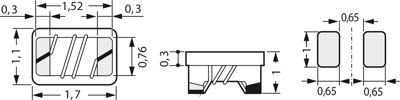

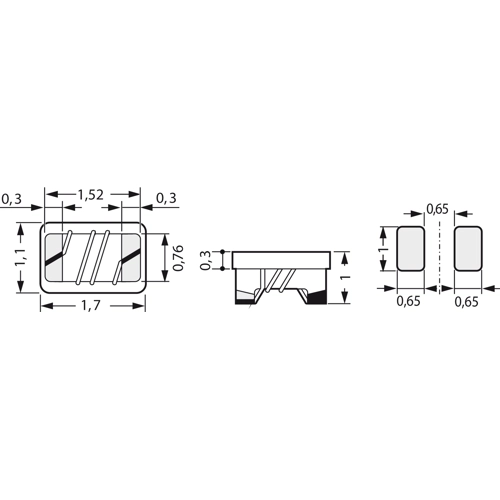

Technical specifications
Version RF choke
Design SMD 0603
Width 1.1 mm
DC current 0.6 A
DC resistance 0.28 Ω
Quality Q Q 38
Height 1 mm
Inductance 0.000047 mH
Length 1.7 mm
Measuring frequency 200 MHz
Tolerance ±5 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 134 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
RF choke, SMD 0603, 68 nH, 600 mA, 0603AS-068J-08
Order No.:
 74D1530
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-068J-08
20 pcs.
0.24 €
100 pcs.
0.20 €
500 pcs.
0.17 €
2000 pcs.
0.15 €
4000 pcs.
0.14 €
4.83 € *
Available: 960 pcs.
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000068 mH
0.6 A
0.34 Ω
RF choke, SMD 0603, 100 nH, 400 mA, 0603AS-R10J-08
Order No.:
 74D1536
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R10J-08
100 pcs.
0.14 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.0001 mH
0.4 A
0.58 Ω
RF choke, SMD 0603, 47 nH, 600 mA, 0603AS-047J-08
Order No.:
 74D1526
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-047J-08
20 pcs.
0.29 €
100 pcs.
0.24 €
500 pcs.
0.20 €
2000 pcs.
0.18 €
4000 pcs.
0.17 €
5.83 € *
Available: 1,879 pcs.
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000047 mH
0.6 A
0.28 Ω
RF choke, SMD 0603, 220 nH, 200 mA, 0603AS-R22J-08
Order No.:
 74D1548
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R22J-08
20 pcs.
0.24 €
100 pcs.
0.20 €
500 pcs.
0.17 €
2000 pcs.
0.15 €
4000 pcs.
0.14 €
4.83 € *
Available: 650 pcs.
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00022 mH
0.2 A
1.6 Ω
RF choke, SMD 0603, 7.5 nH, 700 mA, 0603AS-7N5J-08
Order No.:
 79D6059
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-7N5J-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.0000075 mH
0.7 A
0.12 Ω
RF choke, SMD 0603, 470 nH, 150 mA, 0603AS-R47J-01
Order No.:
 79D6025
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R47J-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00047 mH
0.15 A
2.8 Ω
RF choke, SMD 0603, 130 nH, 200 mA, 0603AS-R13J-01
Order No.:
 79D6042
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R13J-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00013 mH
0.2 A
0.9 Ω
RF choke, SMD 0603, 39 nH, 600 mA, 0603AS-039J-01
Order No.:
 79D6111
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-039J-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000039 mH
0.6 A
0.25 Ω
RF choke, SMD 0603, 10 nH, 700 mA, 0603AS-010J-01
Order No.:
 79D6128
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-010J-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00001 mH
0.7 A
0.13 Ω
RF choke, SMD 0603, 8 nH, 700 mA, 0603AS-8N0J-08
Order No.:
 79D6055
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-8N0J-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000008 mH
0.7 A
0.12 Ω
RF choke, SMD 0603, 5.1 nH, 700 mA, 0603AS-5N1K-01
Order No.:
 79D6068
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-5N1K-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±10 %
1 mm
0.0000051 mH
0.7 A
0.1 Ω
RF choke, SMD 0603, 2 nH, 170 mA, 0603AS-2N0K-08
Order No.:
 79D6081
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-2N0K-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±10 %
1 mm
0.000002 mH
0.17 A
0.17 Ω
RF choke, SMD 0603, 51 nH, 600 mA, 0603AS-051J-01
Order No.:
 79D6106
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-051J-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000051 mH
0.6 A
0.28 Ω
RF choke, SMD 0603, 250 nH, 150 mA, 0603AS-R25J-08
Order No.:
 79D6033
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R25J-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00025 mH
0.15 A
2.3 Ω
RF choke, SMD 0603, 4.3 nH, 700 mA, 0603AS-4N3K-01
Order No.:
 79D6072
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-4N3K-01
100 pcs.
0.22 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±10 %
1 mm
0.0000043 mH
0.7 A
0.07 Ω
RF choke, SMD 0603, 33 nH, 600 mA, 0603AS-033J-08
Order No.:
 74D1522
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-033J-08
4 pcs.
0.23 €
100 pcs.
0.19 €
500 pcs.
0.16 €
2000 pcs.
0.15 €
4000 pcs.
0.13 €
0.94 € *
Available: 4 pcs.
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000033 mH
0.6 A
0.22 Ω
RF choke, SMD 0603, 82 nH, 400 mA, 0603AS-082J-08
Order No.:
 79D6098
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-082J-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.000082 mH
0.4 A
0.54 Ω
RF choke, SMD 0603, 680 nH, 140 mA, 0603AS-R68J-01
Order No.:
 79D6020
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-R68J-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00068 mH
0.14 A
3 Ω
RF choke, SMD 0603, 30 nH, 600 mA, 0603AS-030J-08
Order No.:
 79D6115
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-030J-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±5 %
1 mm
0.00003 mH
0.6 A
0.22 Ω
RF choke, SMD 0603, 1.5 nH, 850 mA, 0603AS-1N5K-08
Order No.:
 79D6090
Manufacturer:
 Fastron
Manufacturer SKU
 0603AS-1N5K-08
100 pcs.
0.27 €
0.00 € *
Currently not in stock, we will order for you
SMD 0603
RF choke
1.1 mm
1.7 mm
±10 %
1 mm
0.0000015 mH
0.85 A
0.03 Ω
*incl. VAT plus shipping costs
