DR 07 | ELC
Decade Box Resist. 7 1 ohm to 11111 110 Mohms
Active
Product by ELC at Bürklin Elektronik
Decade Box, DR 07, ELC

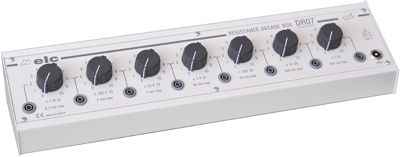

The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact.
Features
- Seven decades are 1ohm, 10ohm, 100ohm, 1kohm, 10kohm, 100kohm and 1M
- Outputs on each decade via 4mm safety sockets
- Resistance resolution is 1ohm
- Maximum resistance measurement is 11.111 Mohm
- Maximum power rating is 0.5 W
- Screen outputs (front panel and case) on safety earth socket
- Good long-term stability
| Version | resistance decade | |
| Resistance Range | 1 Ω to 11.111 MΩ |
| Country of origin | FR |
| Customs tariff number | 85332100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
