DR 05 | ELC
Decade Box Resistance 5 1 ohm to 111110 Kohms
Order No.: 24K9043
EAN: 3760244880413
MPN:
DR 05
DR05
Unit Price (€ / pc.)
160.65 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

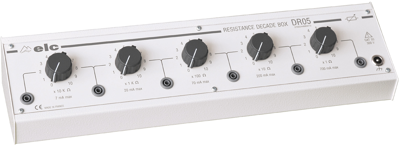

Decade Box, DR 05, ELC
The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact.
Features
- Five decades are 1ohm, 10ohm, 100ohm, 1kohm and 10kohm
- Outputs on each decade via 4mm safety sockets
- Resistance resolution is 1ohm
- Maximum resistance measurement is 111.11kohm
- Maximum power rating is 0.5W
- Screen outputs (front panel and case) on safety earth socket
- Good long-term stability
Technical specifications
| Version | resistance decade | |
| Resistance Range | 1 Ω to 11.110 KΩ |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
