DR 04 | ELC

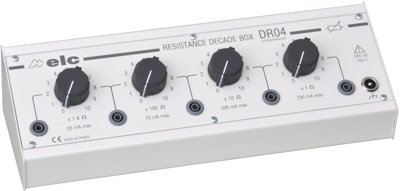

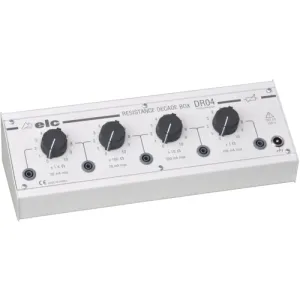

Decade Box Resistance, DR 04, ELC

The ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact.

Features

• Four decades are 1 ohm, 10 ohm, 100 ohm and 1 kohm
• Outputs on each decade via 4 mm safety sockets
• Resistance resolution is 1 ohm
• Maximum resistance measurement is 11.11 kohm
• Maximum power rating is 0.5 W
• Screen outputs (front panel and case) on safety earth socket
• Good long-term stability
