EA W162B-BNLW | DISPLAY VISIONS
LCD text display, 2 x 16 character, STN, viewing area: 99 x 24 mm, EA W162B-BNLW
Order No.: 73S2414
MPN:
EA W162B-BNLW
Unit Price (€ / pc.)
31.773 € *
Available: 1 pcs.

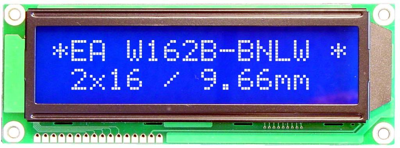

Text display, EA W162B-BNLW, DISPLAY VISIONS
2 line text LCD with 16 characters an 9.66 mm character height / white text on blue background. White LED backlight. Incl. controller compatible to HD44780 / ST7066 with 4- / 8-bit interface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 2 x 16 character | |
| Viewing area (width) | 99 mm | |
| Viewing range (height) | 24 mm | |
| Technology | STN | |
| max. operating temperature | 50 °C | |
| Height | 44 mm | |
| type of backlight | LED - white | |
| IC controller/driver | HD44780 compatible | |
| Character height | 9.66 mm | |
| Width | 122 mm | |
| min. operating temperature | 0 °C | |
| Background color | blue | |
| Thickness | 13.6 mm | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
