EA W162-NLED | DISPLAY VISIONS

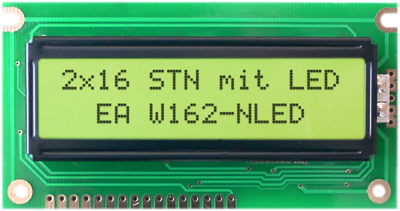

LCD text display, 2 x 16 character, STN, viewing area: 66 x 17 mm, EA W162-NLED

Order No.: 73S2417
MPN:
EA W162-NLED
EA W162-NLED DISPLAY VISIONS LED-Modules
Image may differ
Unit Price (€ / pc.)
17.6715 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
17.67 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.6715 €

Text display, EA W162-NLED, DISPLAY VISIONS

2 line text LCD with 16 characters an 5.55 mm character height / white text on blue background. White LED backlight. Incl. controller compatible to HD44780 / ST7066 with 4- / 8-bit interface.

Technical specifications
min. operating temperature 0 °C
IC controller/driver HD44780 compatible
Viewing range (height) 17 mm
Width 84 mm
Background color yellow/green
Viewing area (width) 66 mm
Character height 5.55 mm
Display 2 x 16 character
max. operating temperature 50 °C
Thickness 14 mm
Technology STN
MPU interface 4-Bit, 8-Bit
type of backlight LED - yellow green
Height 44 mm
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
