EA W161-DNLED | DISPLAY VISIONS
LCD text display, 1 x 16 character, viewing area: 66 x 17 mm, EA W161-DNLED
Order No.: 73S2413
MPN:
EA W161-DNLED
Unit Price (€ / pc.)
13.7564 € *
Standard delivery time from the manufacturer is: 1 Week

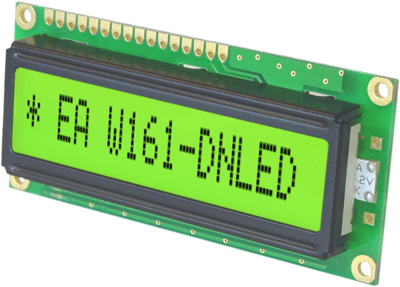

Text display, EA W161-DNLED, DISPLAY VISIONS
1-line display with 16 characters and 6.56 mm character height. Yellow/green LED backlight. Incl. controller HD44780 / ST7066 compatible for 4-/ and 8-bit interface. Connection: solder eye row.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 1 x 16 character | |
| Viewing area (width) | 66 mm | |
| Viewing range (height) | 17 mm | |
| max. operating temperature | 70 °C | |
| Height | 36 mm | |
| type of backlight | LED - yellow green | |
| IC controller/driver | HD44780 compatible | |
| Character height | 6.56 mm | |
| Width | 80 mm | |
| min. operating temperature | -20 °C | |
| Background color | yellow/green | |
| Thickness | 14.5 mm | |
| MPU interface | 4-Bit, 8-Bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
