HD6025P | CRYDOM
Solid state relay, 660 VAC, zero voltage switching, 4-32 VDC, 25 A, screw mounting, HD6025P
Unit Price (€ / pc.)
118.0599 € *
Available: 2 pcs.
Leadtime: 3 Weeks **
Total Price:
118.06 € *
Price list
Quantity
Price per unit*
1 pcs.
118.0599 €
3 pcs.
114.5137 €
10 pcs.
110.5867 €
25 pcs.
107.6355 €
100 pcs.
102.9112 €
*incl. VAT plus shipping costs
**Subject to prior sale

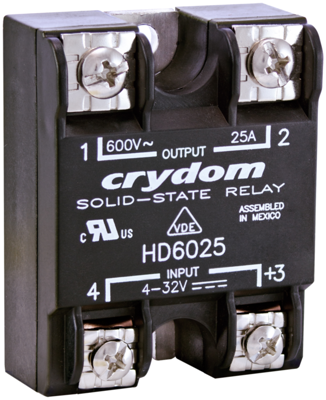

Solid State Relay, HD6025P, CRYDOM
Solid State Relay, Panel Mount, IP00, 660VAC/25A, DC In, Zero Cross, IOP
Features
- Ratings from 25A to 125A @ 48-660 VAC
- SCR output for heavy industrial loads
- Zero Voltage or instantaneous turn-on outputs
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- AC or DC control
- Direct bond copper substrate
- EMC compliant to Level 3
- Direct power lead frame
- Epoxy free design
Technical specifications
| LED display | No | |
| Assembly | screw mounting | |
| Rated current | 25 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Voltage | 4-32 VDC | |
| Control Voltage | 660 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
