D53TP50D-10 | CRYDOM
Solid state relay, 48-530 VAC, instantaneous switching, 4-32 VDC, 50 A, PCB mounting, D53TP50D-10
Unit Price (€ / pc.)
388.2137 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
Total Price:
388.21 € *
Price list
Quantity
Price per unit*
1 pcs.
388.2137 €
2 pcs.
380.4549 €
3 pcs.
372.6842 €
7 pcs.
363.6283 €
10 pcs.
355.8576 €
*incl. VAT plus shipping costs
**Subject to prior sale

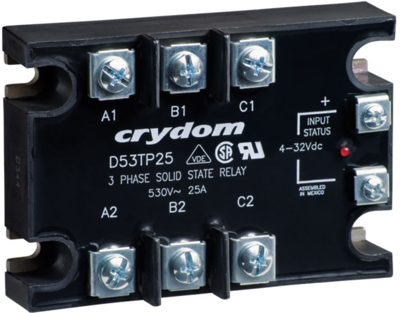

Solid State Relay, D53TP50D-10, CRYDOM
Solid State Relay, 3-Phase, Panel Mount, IP00, 530VAC/50A, 4-32VDC In, Instantaneous
Features
- Three-phase solid-state relay; Ratings 25 A, 50 A per phase @ 48-530 VAC
- 2 package styles IP00 or IP20 (See IP20 spec sheet for more information)
- SCR output for heavy industrial loads
- Transient protection built in
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) output
- LED input status indicator
- UL Recognized, CE Compliant to EN60950-1
Technical specifications
LED display | Yes | |
Assembly | PCB mounting | |
Rated current | 50 A | |
Switching Mode | instantaneous switching | |
Voltage V RRM (peak reverse voltage) | 1.2 kV | |
Voltage | 4-32 VDC | |
Control Voltage | 48-530 VAC |
Download
Logistics
Country of origin | MX |
Customs tariff number | 85364900 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
