C53TP50C-10 | CRYDOM
Solid state relay, 48-530 VAC, instantaneous switching, 280 VAC, 50 A, PCB mounting, C53TP50C-10
Unit Price (€ / pc.)
224.3507 € *
Available: 1 pcs.
Leadtime: 3 Weeks **

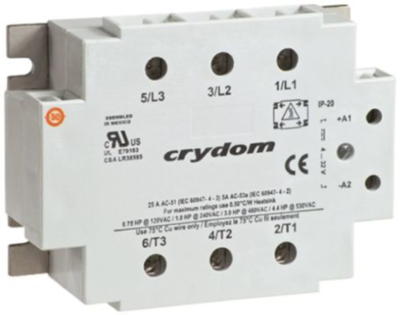

Solid State Relay, C53TP50C-10, CRYDOM
Solid State Relay, 3-Phase, Panel Mount, IP20, 530VAC/50A, 280VAC In, Instantaneous
Features
- Three-phase solid-state relay; Ratings 25 A, 50 A per phase @ 48-530 VAC
- 2 package styles IP20 or IP00 (See IP00 spec sheet for more information)
- SCR output for heavy industrial loads
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) output
- LED input status indicator
- Transient protection built in
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 50 A | |
| Switching Mode | instantaneous switching | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Voltage | 280 VAC | |
| Control Voltage | 48-530 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
