D53TP25D-10 | CRYDOM
Solid state relay, 48-530 VAC, instantaneous switching, 4-32 VDC, 25 A, PCB mounting, D53TP25D-10
Unit Price (€ / pc.)
220.6498 € *
Available: 0 pcs.
Available in 5 Days: 9 pcs.
Leadtime: 1 Week **
Total Price:
220.65 € *
Price list
Quantity
Price per unit*
1 pcs.
220.6498 €
2 pcs.
202.3119 €
*incl. VAT plus shipping costs
**Subject to prior sale

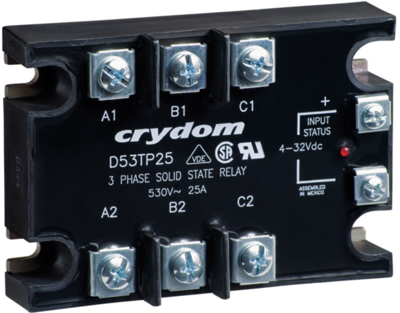

Solid State Relay, D53TP25D-10, CRYDOM
Solid State Relay, 3-Phase, Panel Mount, IP00, 530VAC/25A, 4-32VDC In, Instantaneous
Features
- Three-phase solid-state relay; Ratings 25 A, 50 A per phase @ 48-530 VAC
- 2 package styles IP00 or IP20 (See IP20 spec sheet for more information)
- SCR output for heavy industrial loads
- Transient protection built in
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) output
- LED input status indicator
- UL Recognized, CE Compliant to EN60950-1
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 25 A | |
| Switching Mode | instantaneous switching | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Voltage | 4-32 VDC | |
| Control Voltage | 48-530 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
