D2410 | CRYDOM
Solid state relay, 3-32 VDC, zero voltage switching, 24-280 VAC, 10 A, PCB mounting, D2410
Unit Price (€ / pc.)
70.1624 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
70.16 € *
Price list
Quantity
Price per unit*
2 pcs.
70.1624 €
8 pcs.
66.8066 €
16 pcs.
65.1168 €
20 pcs.
63.7126 €
*incl. VAT plus shipping costs
**Subject to prior sale

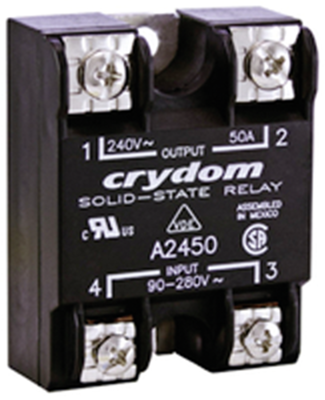

Solid-state relays series 1 240 VAC, type Crydom A24../D24.
No-voltage release, with SCR output and LED status display, for industrial applications. Panel mount, with screw terminals; Operating voltage: 24 to 280 V (47 to 440 Hz). Control current: max. 12 mA. Peak reverse voltage: 600 V. Leakage current: 1.0 mA rms. Dielectric strength: 4000 Vrms. Insulation resistance: min. 10 Gohm on 500 VDC. Capacitance input/output: max. 8.0 pF. EMC level: 3. Dimensions: 47.6 x 44.5 x 22.6 mm. Operating temperatures: –20 to +80 °C. Certifications: UL, CSA, VDE, EN60950-1. Table index, type, load current, control voltage range..
Type: D2410, 10 A, 3.0 to 32 VDC
Technical specifications
| Assembly | PCB mounting | |
| Rated current | 10 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage | 24-280 VAC | |
| Control Voltage | 3-32 VDC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
