A2410PG | CRYDOM
Solid state relay, 280 VAC, zero voltage switching, 90-280 VAC, 10 A, PCB mounting, A2410PG
Unit Price (€ / pc.)
68.3298 € *
Available: 0 pcs.
Leadtime: 25 Weeks **

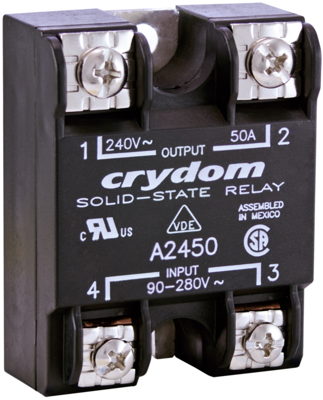

Solid State Relay, A2410PG, CRYDOM
Solid State Relay, Panel Mount, IP00, 280VAC/10A, 90-280VAC In, Zero Cross, LED, TP
Features
- Ratings from 10A to 125A @ 24-280 VAC
- SCR output for heavy industrial loads
- Zero voltage or instantaneous turn-on outputs
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- AC or DC control
- Direct bond copper substrate
- EMC compliant to Level 3
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 10 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage | 90-280 VAC | |
| Control Voltage | 280 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
