BYB-3-14H456 | by.B
Threaded pin, internal hexagon, M5, Ø 5 mm, 8 mm, steel, galvanized, DIN 916/ISO 4029, BYB-3-14H456
Order No.: 14H456
EAN: 4099889495706
MPN:
BYB-3-14H456
Unit Price (€ / pc.)
0.0797 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0797 €
100 pcs.
0.0726 €
500 pcs.
0.0631 €
1000 pcs.
0.0571 €
5000 pcs.
0.0500 €
*incl. VAT plus shipping costs
Subject to prior sale

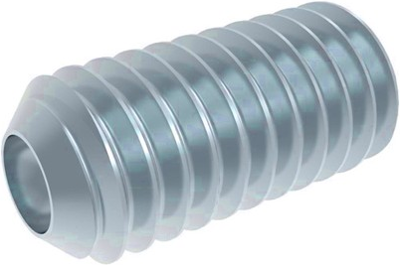

Threaded pins with hex socket, zinc galvanized DIN 916/ISO 4029, type M.
Made of steel.

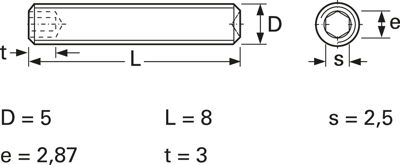

Technical attributes (D x L, inner hexagon dimensions s and e, hexagonal socket depth t): M 5 x 8, s 2.5, e 2.87, t 3.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Spindle drive type | internal hexagon | |
| Thread size | M5 | |
| Length | 8 mm | |
| Standard number | DIN 916/ISO 4029 | |
| Material | steel, galvanized | |
| Product type | threaded pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 73181568 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
