BYB-5-90F2175 | by.B
Heatshrink tubing, 4:1, (4/1 mm), PO, crosslinked, black, BYB-5-90F2175
Order No.: 90F2175
EAN: 4070211005893
MPN:
BYB-5-90F2175
Unit Price (€ / mtr.)
1.3209 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3209 €
10 mtr.
1.1543 €
50 mtr.
1.0591 €
150 mtr.
0.9758 €
300 mtr.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat-shrink tubing, BYB-5-90F2175, by.B

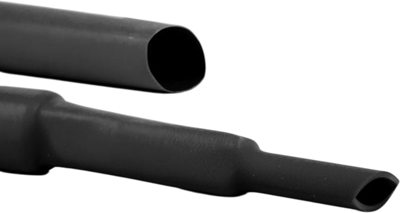

Heat-shrink tubing 4:1 double-walled with adhesive coating, flame-retardant, self-extinguishing, halogen-free and UV-stabilized, 4,0/1,0 mm, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PO, crosslinked | |
| Colour | black | |
| Inner diameter before shrinkage | 4 mm | |
| min. operating temperature | -55 °C | |
| Inner diameter after shrinkage | 1 mm | |
| Shrinking temperature | 70 °C | |
| Shrinking rate | 4:1 | |
| Length | 150 m | |
| max. operating temperature | 125 °C | |
| Wall thickness | 1 mm | |
| contains glue inside | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39173900 |

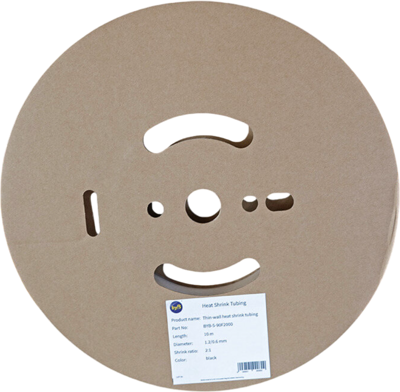

| Original Packaging | Reel with 150 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
