SF-0603F050-2 | Bourns Electronics GmbH
SMD fuse SMD 0603, 500 mA, F, 50 V (DC), 50 A breaking capacity, SF-0603F050-2
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 16 Weeks

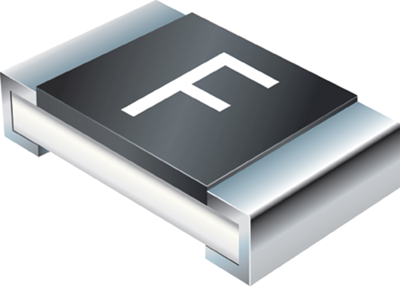

SMD-Fuse, SF-0603F050-2, BOURNS
The SF-0603F050-2 is a SMT fast-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Fast acting thin film chip fuse for overcurrent protection
- 1608 miniature footprint
- Surface mount packaging for automated assembly
- RoHS-compatible and halogen free
Applications
- Portable memory
- LCD monitors
- Rechargeable battery pack
- Industrial controllers
- Digital cameras
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Enclosure | SMD | |
| Breaking capacity | 50 A | |
| Design | SMD 0603 | |
| Width | 0.8 mm | |
| Height | 0.45 mm | |
| Tripping characteristics | F | |
| Version | SMD fuse | |
| Length | 1.6 mm | |
| Rated current | 500 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
