84060100.MT7 | Bopla

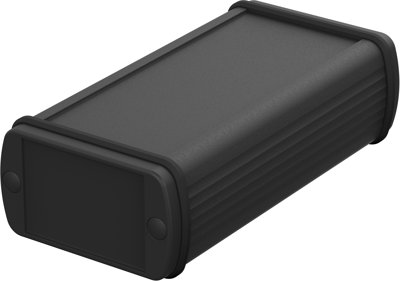

Aluminum enclosure, (L x W x H) 100 x 57 x 32 mm, black, IP65, 84060100.MT7
Unit Price (€ / pc.)
36.9376 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
36.94 € *
Price list
Quantity
Price per unit*
1 pcs.
36.9376 €
5 pcs.
33.4747 €
10 pcs.
30.1427 €
50 pcs.
27.1677 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Bopla Alubos ABP.
Rugged enclosure with good EMC attenuation values and high degree of protection IP 65; Enclosure surface: black, structured, highly resistant to scratching. With integrated guide grooves for PCBs. Items supplied include two terminating walls with 1.0 mm recess for membranes (as front and rear panel), black seals, screws and screw covers.
Technical attributes (type, overall dimensions): ABP600-0100, W 57, L 100, H 32 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 32 mm | |
| Colour | black | |
| Degree of protection (IP) | IP65 | |
| Material | aluminum | |
| Width | 57 mm | |
| Length | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042100 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
