99 0737 02 24 | binder

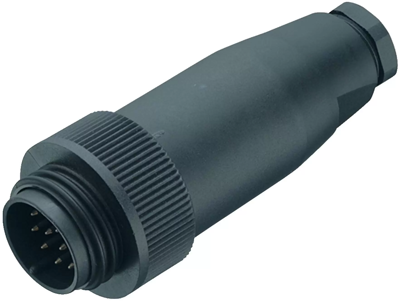

Plug, 24 pole, solder connection, screw locking, straight, 99 0737 02 24

Order No.: 70P0905
EAN: 4099891700751
MPN:
99 0737 02 24
Series: 694
binder
default L
front L
Image may differ
Print
Key Specification:
Version plug
Cable cross-section 0.25 mm²
Pin number 24 pole
Orientation straight
Contact connection solder connection
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
32.5703 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
32.57 € *
Price list
Quantity
Price per unit*
1 pcs.
32.5703 €
10 pcs.
30.6187 €
25 pcs.
28.4767 €
50 pcs.
26.4894 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

Male cable connector, 99 0737 02 24, binder

RD30 Male cable connector, Contacts: 24, 12.0-14.0 mm, unshielded, solder, IP65.
Technical specifications
Version plug
Additional parts equipped
Shell Material polyamide
Cable diameter 12 to 14 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 24 pole
Type of locking screw locking
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Accessory
Lock cap for plug, 08 0425 000 000
Image may differ

Lock cap for plug, 08 0425 000 000

Order No.:

 67F160

Manufacturer SKU:

 08 0425 000 000



Available: 0 pcs. Leadtime: 6 Weeks **
7.43 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.4256 €
10 pcs.
6.6878 €
50 pcs.
5.8786 €
100 pcs.
5.2955 €
Variations
Cable cross-section
contact surface
Cable diameter
Pin number
Contact connection
Shell Material
Additional parts
Version
Type of locking
Assembly
Orientation
