99 0709 02 05 | binder

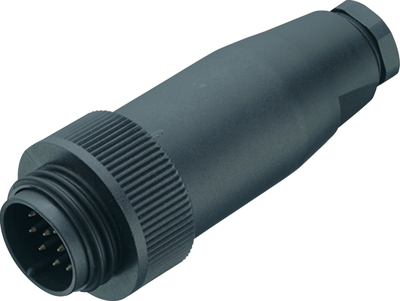

Plug, 4 pole + PE, screw connection, screw locking, straight, 99 0709 02 05
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
36.1641 € *
Available: 1 pcs.
Total Price:
36.16 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1641 €
10 pcs.
31.8206 €
50 pcs.
29.6548 €
150 pcs.
28.3577 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99-0709-02-05, Franz Binder
RD30 Male connector, poles 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 2.5 mm² | |
| Pin number | 4 pole + PE | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 12 to 14 mm | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
