99 0717 00 13 | binder

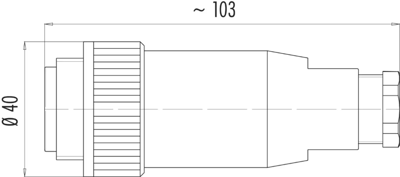

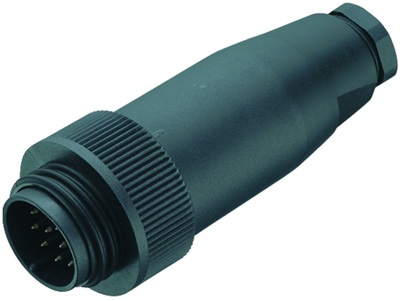

Plug, 12 pole + PE, solder cup, screw locking, straight, 99 0717 00 13
Connector for automation technology, type Binder 694
With ground terminal and screw locking. Male and female cable connectors with cable bushing Pg 13.5. Splash proof; Female contacts: copper tin. Male contacts: copper zinc. Contact surface: nickel-plated. Cable connection: solder terminals max. 1.0 mm². Contact carrier PA 66 to UL 94 V-0. Housing: straight/angled PA 66 to UL 94 V-0. Degree of protection in mated state (IEC 60529): IP 65. Cable outlet: 10 to 12 mm. Test surge voltage: 4800 V. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Insertion/removal cycles: min. 500. Operating temperatures: - 40 to +100 °C.
Cable plug connectors, straight, type 694.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0717-00-13, 12-pole, 250 V/6.0 A
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | polyamide | |
| Cable diameter | 10 to 12 mm | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 1.0 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 12 pole + PE | |
| Type of locking | screw locking |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
