99 0737 00 24 | binder

Plug, 24 pole, solder cup, screw locking, straight, 99 0737 00 24

Order No.: 67F104
EAN: 4099889730111
MPN:
99 0737 00 24
Series: 694

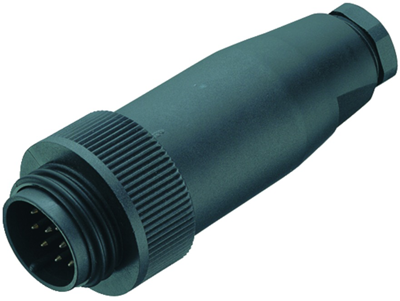

99 0737 00 24 binder Other Circular Connectors Image 1
99 0737 00 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.2034 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.20 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2034 €
10 pcs.
25.5731 €
25 pcs.
24.0261 €
50 pcs.
22.5862 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector for automation technology, type Binder 694.

Without ground terminal. With screw locking. Male and female cable connectors with cable bushing Pg 13.5. Splash proof; Female contacts: copper tin. Male contacts: copper zinc. Contact surface: gold-plated. Cable connection: solder terminals max. 0.25 mm². Contact carrier PA 66 to UL 94 V-0. Housing: straight/angled PA 66 to UL 94 V-0. Degree of protection in mated state (IEC 60529): IP 65. Cable outlet: 10 to 12 mm. Test surge voltage: 1750 V. Contact resistance: max. 3.0 mohm. Insulation resistance: min. 10 Gohm. Insertion/removal cycles: min. 500. Operating temperatures: - 40 to +100 °C.

Cable plug connectors, straight, type 694.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0737-00-24, 24-pole, 125 V/3.0 A

Technical specifications
Version plug
Cable cross-section 0.25 mm²
Pin number 24 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 10 to 12 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
