99 0717 03 13 | binder
Plug, 12 pole + PE, solder connection, screw locking, straight, 99 0717 03 13
Unit Price (€ / pc.)
27.1320 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
27.13 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1320 €
10 pcs.
25.5017 €
25 pcs.
23.9666 €
50 pcs.
22.5386 €
*incl. VAT plus shipping costs
Subject to prior sale

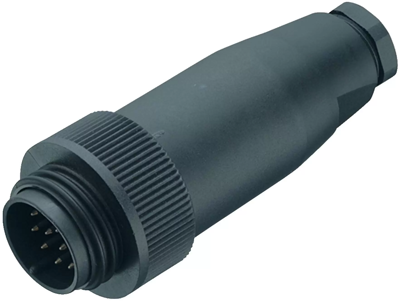

Male cable connector, 99 0717 03 13, binder
RD30 Male cable connector, Contacts: 12+PE, 14.0-18.0 mm, unshielded, solder, IP65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.0 mm² | |
| Pin number | 12 pole + PE | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 14 to 18 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
