99 0709 03 05 | binder

Plug, 4 pole + PE, screw connection, screw locking, straight, 99 0709 03 05

Order No.: 70P0892
EAN: 4099891700621
MPN:
99 0709 03 05
Series: 694

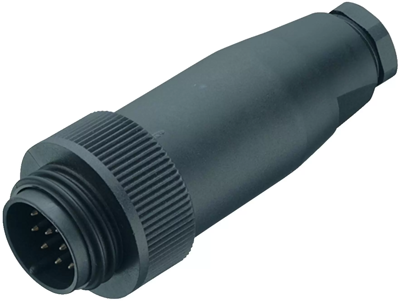

99 0709 03 05 binder Other Circular Connectors Image 1
99 0709 03 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.0245 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.02 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0245 €
10 pcs.
26.3466 €
25 pcs.
24.7758 €
50 pcs.
23.2764 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0709 03 05, binder

RD30 Male cable connector, Contacts: 4+PE, 14.0-18.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE.

Technical specifications
Version plug
Cable cross-section 2.5 mm²
Pin number 4 pole + PE
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 14 to 18 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
