9110KA | Aero-Motive
Balancer, 9110KA, load capacity (min/max) 36 to 50 kg, stroke 2.74 m, without locking, 1301720313
Unit Price (€ / pc.)
2,311.3727 € *
Standard delivery time from the manufacturer is: On Request
Balancer, 1301720313, Aero-Motive

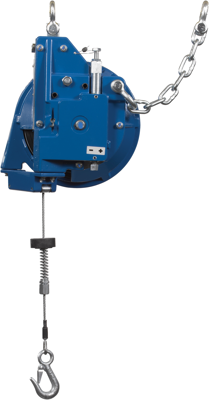

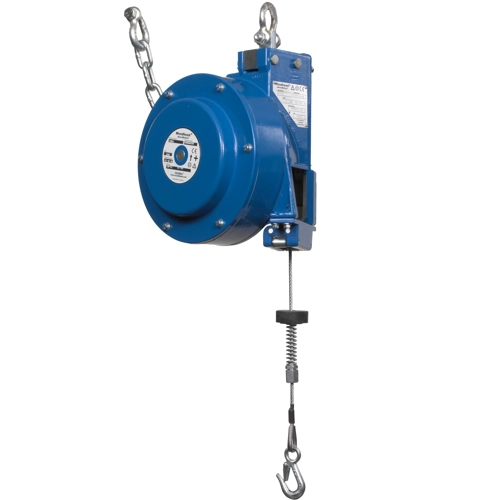

Aero-Motive Heavy Industrial Duty KA Balancer with Extended Cable Travel, Weight Range 36.0-50.0 kg (80.0-110.0 lb), 2.74 m (9.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | balancer | |
| Weight | 28 kg | |
| Stroke | 2.74 m | |
| Locking | without locking | |
| Manual locking | Yes | |
| Rope pullout | 2.7 m | |
| Shell Material | aluminum | |
| Suspension Rope | galvanized | |
| Spring fracture safety device | Yes | |
| Rope Diameter | 4.76 mm | |
| Max Load capacity | 50 kg | |
| Min Load capacity | 36 kg | |
| Fall protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
