22F | Aero-Motive
Retractor 22F, 8-22LB/3.6, 8FT/2.4M
Unit Price (€ / pc.)
240.8322 € *
Available: 0 pcs.
Next delivery: 100 pcs. on 2024-05-17
Leadtime: 7 Weeks **

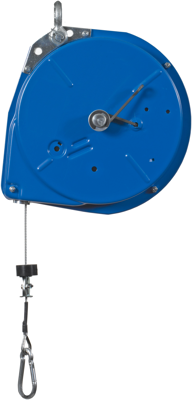

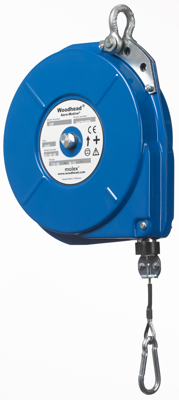

Retractor, 1301750011, Aero-Motive
Aero-Motive Standard Industrial Duty Retractor, Weight Range 3.6-10.0 kg (8.0-22.0 lb), 2.40 m (8.0') Travel
Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.
Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space
Features
- New and improved power springs
- Provides excellent ergonomics and life cycles
- Durable stranded-steel aircraft cable features adjustable cable stop
- Increased durability Allows tools to be set at different positions/ heights
Technical specifications
| Locking | false | |
| Version | retractor | |
| Shell Material | sheet metal enclosure | |
| Weight | 4.5 kg | |
| Stroke | 2.4 m | |
| Rope Diameter | 2.38 mm | |
| Fall protection | No | |
| Spring fracture safety device | No | |
| Manual locking | No | |
| Rope pullout | 2.4 m | |
| Max Load capacity | 10 kg | |
| Min Load capacity | 3.6 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
