155060GS75300 | Würth Elektronik eiSos

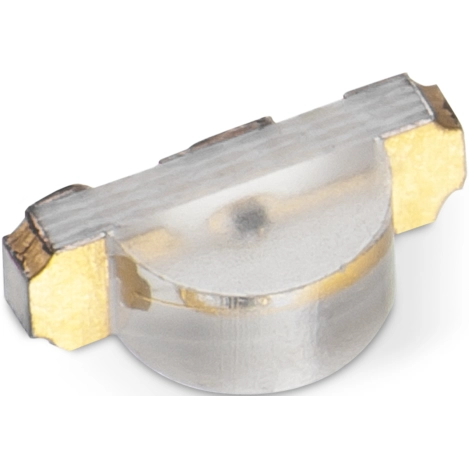

LED, SMD, green, 515 nm, 260 to 560 mcd, 140°, 155060GS75300
Unit Price (€ / pc.)
0.6783 € *
Next delivery: 100 pcs. on 2026-02-25
Available in 5 Days: 58,888 pcs. - if ordered today
Total Price:
0.68 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6783 €
10 pcs.
0.5093 €
100 pcs.
0.4522 €
250 pcs.
0.4236 €
500 pcs.
0.4070 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Colour of the LED | green | |
| Light intensity min. | 0.26 cd | |
| Light intensity typ. | 0.56 cd | |
| Radiation angle | 140 ° | |
| Lens | clear | |
| On-State Voltage | 3.5 V | |
| Forward Current | 20 mA | |
| Wavelength | 515 nm | |
| Length | 1.6 mm | |
| Width | 0.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
