EP2405 | WÖHRLE
Power supply, 1-phase, 24 to 28 VDC, 5 A (0 to 0.5 A), 120 W, EP2405
Unit Price (€ / pc.)
94.01 € *
Available in 3 Days: 762 pcs. - if ordered today

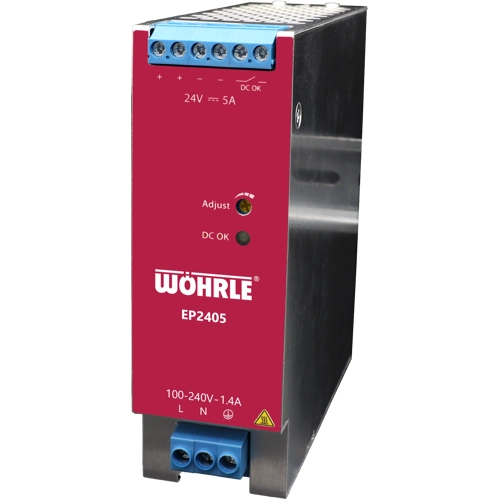

DC power supply, EP2405, WÖHRLE
Single-phase power supply, output: 24 volts DC, power: 5 amps
Features
- Slim design for space-saving installation
- Relay contact for status monitoring
- Power-Boost for reliable performance at peak loads
- High efficiency of up to 94%
- Suitable for industrial applications and control systems
- Ideal for switchgear construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Output current | 5 A | |
| Range of Output Currence | 0 to 0.5 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 85-264 VAC, 100-375 VDC | |
| Power | 120 W | |
| efficiency | 91 % | |
| Degree of protection (IP) | IP20 | |
| Width | 40 mm | |
| Height | 124 mm | |
| Depth | 117 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
