DF2405 | WÖHRLE
Power supply, 2/3-phase, 24 to 28 VDC, 5 A (0 to 0.5 A), 120 W, DF2405
Unit Price (€ / pc.)
94.01 € *
Available: 3 pcs.
Available in 3 Days: 865 pcs. - if ordered today

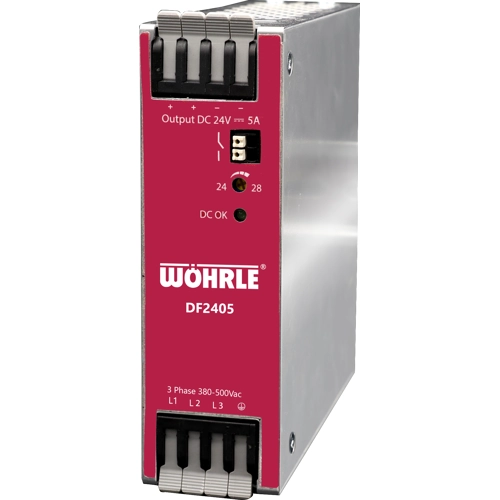

DC power supply, DF2405, WÖHRLE
Three-phase power supply unit with spring-loaded terminals, 24 volts DC, 5 amps, 120% constant overload behaviour
Features
- Slim design for limited space availability
- Spring-loaded terminals for safe and quick installation
- Relay contact for status monitoring
- Constant overload behaviour of 120 %
- Ideal for industry, automation and control panel construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2/3-phase | |
| Output current | 5 A | |
| Range of Output Currence | 0 to 0.5 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 320-575 VAC, 480-800 VDC | |
| Power | 120 W | |
| efficiency | 87.5 % | |
| Width | 124 mm | |
| Height | 38 mm | |
| Depth | 125.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
