MPY20W2220FE00MI00 | Wima
MP film capacitor, 22 nF, ±20 %, 1 kV (DC), MP, 15 mm, MPY20W2220FE00MI00
Order No.: 50D4043
EAN: 4099879857965
MPN:
MPY20W2220FE00MI00
MP 3-Y2 0.022 µF 250 VAC
Series: MP 3-Y2
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 4 Days: 7,650 pcs.
Leadtime: 1 Week **

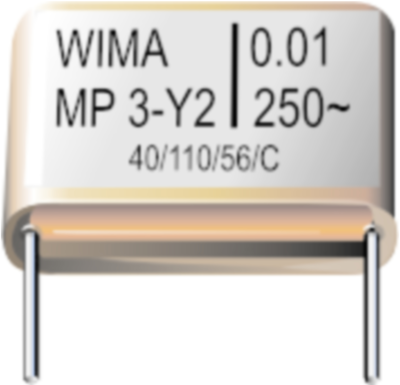

Film capacitor, MPY20W2220FE00MI00, WIMA
The MPY20W2220FE00MI00 is a RFI capacitor connected between phase and neutral or phase and phase conductors. This product is resin impregnated under vacuum and encapsulated with self-extinguishing cast resin,the metallized paper is neither actively nor passively flammable.
Features
- Particularly high reliability against active and passive flammability
- Excellent self-healing as well as high voltage strength
- High degree of interference suppression due to good attenuation and low ESR
- Self-extinguishing epoxy resin, UL 94 V-0, metal foil
- Tinned wire
Applications
- Capacitors connected to the mains between phase or neutral and earthed casing
- By-passing of the basic or supplementary insulation, pulse peak voltage < 5 kV
Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 7 mm | |
| Dielectric material | MP | |
| Interference suppression class | Y2 | |
| Height | 15 mm | |
| Capacity | 22 nF | |
| Length | 19 mm | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 1 kV | |
| Grid | 15 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |

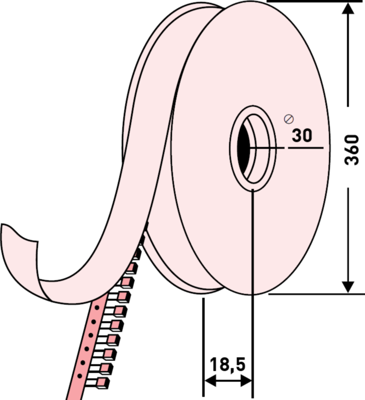

| Original Packaging | Reel with 450 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
