MKS4D044706A00KSSD | Wima
MKS film capacitor, 4.7 µF, ±10 %, 100 V (DC), PET, 27.5 mm, MKS4D044706A00KSSD
Order No.: 43D2670
EAN: 4099879818485
MPN:
MKS4D044706A00KSSD
MKS 4 4.7µF/100VDC 10% RM27.5
Series: MKS 4
Unit Price (€ / pc.)
2.4752 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
1.7612 €
100 pcs.
1.5113 €
500 pcs.
1.3209 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4D044706A00KSSD, WIMA
The MKS4D044706A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

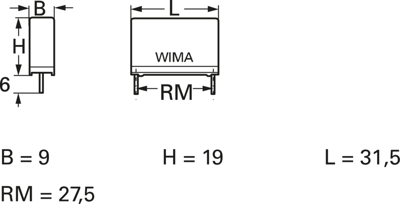

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 4.7 µF | |
| Rated voltage (DC) | 100 V | |
| Length | 31.5 mm | |
| Design | radial | |
| Rated voltage (AC) | 63 V | |
| Width | 9 mm | |
| Grid | 27.5 mm | |
| Tolerance | ±10 % | |
| Dielectric material | PET | |
| Number of pins | 2 | |
| max. operating temperature | 125 °C | |
| Height | 19 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 567 pieces |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
