Wima

MKS4D031002A00KSSD | Wima

MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KSSD

default S
front S
default L
front L
Order No.:  42D952
Manufacturer:  Wima
Manufacturer SKU
MKS4D031002A00KSSD
MKS 4 0.1µF/100VDC 10% RM7.5
Manufacturer series:  MKS 4
EAN: 4099879818065
about the green icons

Active

Total price
( 0.3570 € * / pcs.)
3.57 €
Available: 5,328 pcs.
Quantity
Price per unit*
10 pcs.
0.3570 €
50 pcs.
0.2820 €
250 pcs.
0.2321 €
1000 pcs.
0.2059 €
2000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Show 19 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Wima at Bürklin Elektronik

Film capacitor, MKS4D031002A00KSSD, WIMA

The MKS4D031002A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing

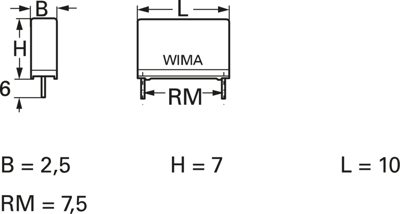

Technical specifications
Number of pins 2
Design radial
Width 2.5 mm
Dielectric material PET
Height 7 mm
Capacity 0.1 µF
Length 10 mm
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage (AC) 63 V
Rated voltage (DC) 100 V
Grid 7.5 mm
Tolerance ±10 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85322500
Original Packaging Bulk with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Design
Grid
Unit
Tolerance
Rated voltage (AC)
Unit
Height
Unit
min. operating temperature
Number of pins
Capacity
Unit
Width
Unit
Length
Unit
Dielectric material
Rated voltage (DC)
Unit
max. operating temperature
1 item in 19 variations
Item description
Price list
Total
Design
Grid
Tolerance
Rated voltage (AC)
Height
min. operating temperature
Number of pins
Capacity
Width
Length
Dielectric material
Rated voltage (DC)
max. operating temperature
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D032203C00KSSD
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D032203C00KSSD
Order No.:
 43D260
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D032203C00KSSD
20 pcs.
0.2820 €
100 pcs.
0.2202 €
500 pcs.
0.1809 €
2000 pcs.
0.1607 €
4000 pcs.
0.1440 €
0.28 € *
Currently not in stock, we will order for you
radial
10 mm
±10 %
63 V
9 mm
-55 °C
2
0.22 µF
4 mm
13 mm
PET
100 V
125 °C
MKS film capacitor, 1 µF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D041002F00KSSD
MKS film capacitor, 1 µF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D041002F00KSSD
Order No.:
 42D964
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D041002F00KSSD
10 pcs.
0.5474 €
50 pcs.
0.4641 €
250 pcs.
0.4165 €
1000 pcs.
0.3689 €
2000 pcs.
0.3332 €
5.47 € *
Available: 355 pcs.
radial
7.5 mm
±10 %
63 V
12.5 mm
-55 °C
2
1 µF
5.7 mm
10.3 mm
PET
100 V
125 °C
MKS film capacitor, 22 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D022202A00KSSD
MKS film capacitor, 22 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D022202A00KSSD
Order No.:
 42D949
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D022202A00KSSD
10 pcs.
0.3570 €
50 pcs.
0.2761 €
250 pcs.
0.2261 €
1000 pcs.
0.2011 €
2000 pcs.
0.1809 €
3.57 € *
Available: 597 pcs.
radial
7.5 mm
±10 %
63 V
7 mm
-55 °C
2
0.022 µF
2.5 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KSSD
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KSSD
Order No.:
 42D952
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031002A00KSSD
10 pcs.
0.3570 €
50 pcs.
0.2820 €
250 pcs.
0.2321 €
1000 pcs.
0.2059 €
2000 pcs.
0.1845 €
3.57 € *
Available: 5,328 pcs.
radial
7.5 mm
±10 %
63 V
7 mm
-55 °C
2
0.1 µF
2.5 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 3.3 µF, ±10 %, 100 V (DC), PET, 22.5 mm, MKS4D043305D00KSSD
MKS film capacitor, 3.3 µF, ±10 %, 100 V (DC), PET, 22.5 mm, MKS4D043305D00KSSD
Order No.:
 43D2668
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D043305D00KSSD
3 pcs.
1.5946 €
25 pcs.
1.3923 €
150 pcs.
1.2376 €
500 pcs.
1.1186 €
1000 pcs.
1.0115 €
4.78 € *
Available: 190 pcs.
radial
22.5 mm
±10 %
63 V
16.5 mm
-55 °C
2
3.3 µF
7 mm
26.5 mm
PET
100 V
125 °C
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D031003C00KSSD
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D031003C00KSSD
Order No.:
 43D254
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031003C00KSSD
10 pcs.
0.3570 €
50 pcs.
0.2820 €
250 pcs.
0.2321 €
1000 pcs.
0.2059 €
2000 pcs.
0.1845 €
3.57 € *
Available: 1,785 pcs.
radial
10 mm
±10 %
63 V
9 mm
-55 °C
2
0.1 µF
4 mm
13 mm
PET
100 V
125 °C
MKS film capacitor, 150 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031502B00KSSD
MKS film capacitor, 150 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031502B00KSSD
Order No.:
 42D954
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031502B00KSSD
10 pcs.
0.4165 €
50 pcs.
0.3213 €
250 pcs.
0.2666 €
1000 pcs.
0.2356 €
2000 pcs.
0.2118 €
4.17 € *
Available: 281 pcs.
radial
7.5 mm
±10 %
63 V
8.5 mm
-55 °C
2
0.15 µF
3 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D032202B00KSSD
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D032202B00KSSD
Order No.:
 42D956
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D032202B00KSSD
10 pcs.
0.3927 €
50 pcs.
0.3094 €
250 pcs.
0.2523 €
1000 pcs.
0.2237 €
2000 pcs.
0.1999 €
3.93 € *
Available: 148 pcs.
radial
7.5 mm
±10 %
63 V
8.5 mm
-55 °C
2
0.22 µF
3 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 330 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D033302C00KSSD
MKS film capacitor, 330 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D033302C00KSSD
Order No.:
 42D958
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D033302C00KSSD
10 pcs.
0.4284 €
50 pcs.
0.3689 €
250 pcs.
0.3213 €
1000 pcs.
0.2856 €
2000 pcs.
0.2570 €
4.28 € *
Available: 492 pcs.
radial
7.5 mm
±10 %
63 V
9 mm
-55 °C
2
0.33 µF
4 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KC00
MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KC00
Order No.:
 49D3110
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031002A00KC00
10 pcs.
0.4522 €
50 pcs.
0.3570 €
250 pcs.
0.2904 €
1000 pcs.
0.2570 €
2000 pcs.
0.2309 €
4.52 € *
Available: 3,322 pcs.
radial
7.5 mm
±10 %
63 V
7 mm
-55 °C
2
0.1 µF
2.5 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 470 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D034702D00KSSD
MKS film capacitor, 470 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D034702D00KSSD
Order No.:
 42D960
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D034702D00KSSD
10 pcs.
0.4998 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3332 €
2000 pcs.
0.2963 €
5.00 € *
Available: 538 pcs.
radial
7.5 mm
±10 %
63 V
9.5 mm
-55 °C
2
0.47 µF
4.5 mm
10.3 mm
PET
100 V
125 °C
MKS film capacitor, 2.2 µF, ±10 %, 100 V (DC), PET, 15 mm, MKS4D042204F00KSSD
MKS film capacitor, 2.2 µF, ±10 %, 100 V (DC), PET, 15 mm, MKS4D042204F00KSSD
Order No.:
 49D3514
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D042204F00KSSD
1200 pcs.
0.6902 €
0.69 € *
Currently not in stock, we will order for you
radial
15 mm
±10 %
63 V
15 mm
-55 °C
2
2.2 µF
8 mm
18 mm
PET
100 V
125 °C
MKS film capacitor, 100 nF, ±5 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00JSSD
MKS film capacitor, 100 nF, ±5 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00JSSD
Order No.:
 49D3108
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031002A00JSSD
10 pcs.
0.5593 €
50 pcs.
0.4046 €
250 pcs.
0.3213 €
1000 pcs.
0.2844 €
2000 pcs.
0.2511 €
5.59 € *
Available: 95 pcs.
radial
7.5 mm
±5 %
63 V
7 mm
-55 °C
2
0.1 µF
2.5 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 4.7 µF, ±10 %, 100 V (DC), PET, 27.5 mm, MKS4D044706A00KSSD
MKS film capacitor, 4.7 µF, ±10 %, 100 V (DC), PET, 27.5 mm, MKS4D044706A00KSSD
Order No.:
 43D2670
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D044706A00KSSD
2 pcs.
1.8683 €
25 pcs.
1.6660 €
150 pcs.
1.4994 €
500 pcs.
1.3566 €
1000 pcs.
1.2852 €
3.74 € *
Available: 330 pcs.
Next delivery: 127 pcs. on 2023-03-31
radial
27.5 mm
±10 %
63 V
19 mm
-55 °C
2
4.7 µF
9 mm
31.5 mm
PET
100 V
125 °C
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D032202B00KI00
MKS film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D032202B00KI00
Order No.:
 49D3215
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D032202B00KI00
5 pcs.
0.9758 €
25 pcs.
0.8330 €
125 pcs.
0.7259 €
500 pcs.
0.6426 €
1000 pcs.
0.5712 €
0.98 € *
Currently not in stock, we will order for you
radial
7.5 mm
±10 %
63 V
8.5 mm
-55 °C
2
0.22 µF
3 mm
10 mm
PET
100 V
125 °C
MKS film capacitor, 680 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D036802E00KSSD
MKS film capacitor, 680 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D036802E00KSSD
Order No.:
 42D962
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D036802E00KSSD
10 pcs.
0.6069 €
50 pcs.
0.4879 €
250 pcs.
0.4165 €
1000 pcs.
0.3689 €
2000 pcs.
0.3213 €
6.07 € *
Available: 98 pcs.
radial
7.5 mm
±10 %
63 V
10.5 mm
-55 °C
2
0.68 µF
5 mm
10.3 mm
PET
100 V
125 °C
MKS film capacitor, 22 µF, ±20 %, 100 V (DC), PET, 27.5 mm, MKS4D052206F00MSSD
MKS film capacitor, 22 µF, ±20 %, 100 V (DC), PET, 27.5 mm, MKS4D052206F00MSSD
Order No.:
 49D3703
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D052206F00MSSD
324 pcs.
7.3661 €
7.37 € *
Currently not in stock, we will order for you
radial
27.5 mm
±20 %
63 V
26 mm
-55 °C
2
22 µF
15 mm
31.5 mm
PET
100 V
125 °C
MKS film capacitor, 150 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D031503C00KSSD
MKS film capacitor, 150 nF, ±10 %, 100 V (DC), PET, 10 mm, MKS4D031503C00KSSD
Order No.:
 43D258
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D031503C00KSSD
3000 pcs.
0.2356 €
0.24 € *
Currently not in stock, we will order for you
radial
10 mm
±10 %
63 V
9 mm
-55 °C
2
0.15 µF
4 mm
13 mm
PET
100 V
125 °C
MKS film capacitor, 10 µF, ±10 %, 100 V (DC), PET, 27.5 mm, MKS4D051006D00KSSD
MKS film capacitor, 10 µF, ±10 %, 100 V (DC), PET, 27.5 mm, MKS4D051006D00KSSD
Order No.:
 43D2674
Manufacturer:
 Wima
Manufacturer SKU
 MKS4D051006D00KSSD
2 pcs.
2.3324 €
25 pcs.
2.0706 €
150 pcs.
1.8683 €
500 pcs.
1.7017 €
1000 pcs.
1.6065 €
4.66 € *
Available: 380 pcs.
radial
27.5 mm
±10 %
63 V
24 mm
-55 °C
2
10 µF
13 mm
31.5 mm
PET
100 V
125 °C
*incl. VAT plus shipping costs
