MKS4D043305D00KSSD | Wima
MKS film capacitor, 3.3 µF, ±10 %, 100 V (DC), PET, 22.5 mm, MKS4D043305D00KSSD
Order No.: 43D2668
EAN: 4099879818478
MPN:
MKS4D043305D00KSSD
MKS 4 3.3µF/100VDC 10% RM22.5
Series: MKS 4
Unit Price (€ / pc.)
3.0821 € *
Available: 100 pcs.
Available in 4 Days: 1,377 pcs. - if ordered today
Total Price:
3.08 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0821 €
10 pcs.
1.9278 €
50 pcs.
1.6898 €
250 pcs.
1.4637 €
760 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4D043305D00KSSD, WIMA
The MKS4D043305D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

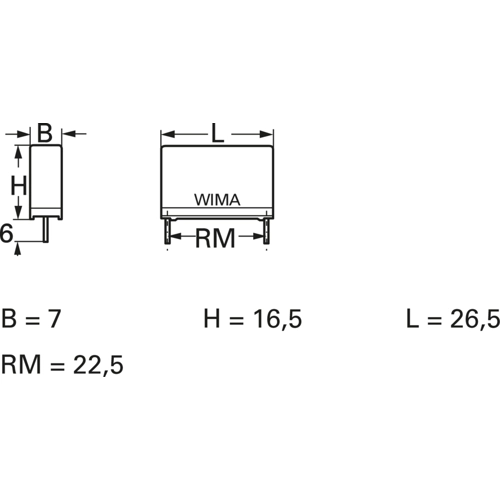

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 3.3 µF | |
| Grid | 22.5 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| Length | 26.5 mm | |
| Rated voltage (AC) | 63 V | |
| Number of pins | 2 | |
| Width | 7 mm | |
| Rated voltage (DC) | 100 V | |
| Height | 16.5 mm | |
| Design | radial | |
| Dielectric material | PET |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 760 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
