MKS4D041002F00KSSD | Wima
MKS film capacitor, 1 µF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D041002F00KSSD
Order No.: 42D964
EAN: 4099879818126
MPN:
MKS4D041002F00KSSD
MKS 4 1.0µF/100VDC 10% RM7.5
Series: MKS 4
Unit Price (€ / pc.)
1.3090 € *
Available: 707 pcs.
Available in 4 Days: 2,721 pcs. - if ordered today
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
0.8211 €
50 pcs.
0.7259 €
250 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4D041002F00KSSD, WIMA
The MKS4D041002F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

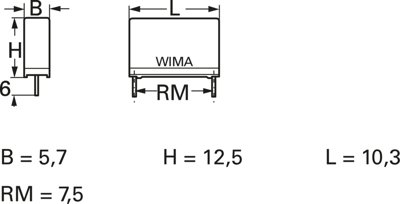

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Dielectric material | PET | |
| Rated voltage (DC) | 100 V | |
| Grid | 7.5 mm | |
| Width | 5.7 mm | |
| Capacity | 1 µF | |
| Number of pins | 2 | |
| Rated voltage (AC) | 63 V | |
| Height | 12.5 mm | |
| Tolerance | ±10 % | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Length | 10.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
