MKS4D031002A00JSSD | Wima
MKS film capacitor, 100 nF, ±5 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00JSSD
Unit Price (€ / pc.)
0.4879 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.3451 €
100 pcs.
0.2975 €
500 pcs.
0.2594 €
1000 pcs.
0.2356 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS4D031002A00JSSD, WIMA
The MKS4D031002A00JSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

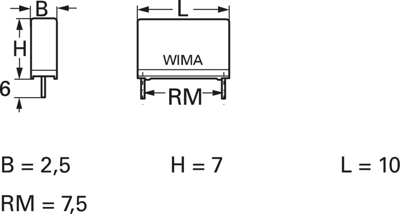

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 10 mm | |
| Rated voltage (DC) | 100 V | |
| Rated voltage (AC) | 63 V | |
| max. operating temperature | 125 °C | |
| Capacity | 100 nF | |
| Grid | 7.5 mm | |
| Height | 7 mm | |
| Tolerance | ±5 % | |
| Width | 2.5 mm | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Design | radial | |
| Dielectric material | PET |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
