MKS4D022202A00KSSD | Wima
MKS film capacitor, 22 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D022202A00KSSD
Order No.: 42D949
EAN: 4099879818058
MPN:
MKS4D022202A00KSSD
MKS 4 0.022µF/100VDC 10% RM7.5
Series: MKS 4
Unit Price (€ / pc.)
0.6664 € *
Available: 1,476 pcs.
Available in 4 Days: 8,914 pcs. - if ordered today
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.4165 €
50 pcs.
0.2987 €
250 pcs.
0.2487 €
1000 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

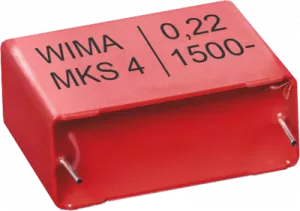

Film capacitor, MKS4D022202A00KSSD, WIMA
The MKS4D022202A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

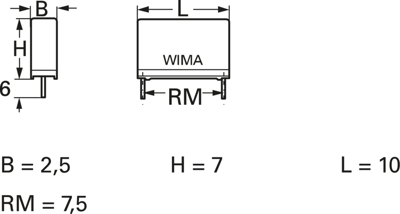

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| max. operating temperature | 125 °C | |
| Width | 2.5 mm | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 100 V | |
| Height | 7 mm | |
| Tolerance | ±10 % | |
| Capacity | 22 nF | |
| Number of pins | 2 | |
| Length | 10 mm | |
| Design | radial | |
| Dielectric material | PET | |
| Rated voltage (AC) | 63 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
