MKP4J044707G00KSSD | Wima
MKP film capacitor, 4.7 µF, ±10 %, 630 V (DC), PP, 37.5 mm, MKP4J044707G00KSSD
Order No.: 43D5946
EAN: 4099879819093
MPN:
MKP4J044707G00KSSD
MKP 4 4.7µF/630VDC 10% RM37.5
Series: MKP 4
Unit Price (€ / pc.)
8.6513 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
8.65 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6513 €
10 pcs.
7.6160 €
100 pcs.
6.6878 €
250 pcs.
6.4141 €
1000 pcs.
6.0095 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4J044707G00KSSD, WIMA
The MKP4J044707G00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications
| Rated voltage (DC) | 630 V | |
| Dielectric material | PP | |
| Capacity | 4.7 µF | |

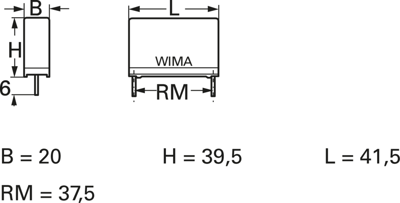

| Grid | 37.5 mm | |
| Width | 20 mm | |
| Height | 39.5 mm | |
| Length | 41.5 mm | |
| Rated voltage (AC) | 280 V | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
