Wima

MKP4J022203C00KSSD | Wima

MKP film capacitor, 22 nF, ±10 %, 630 V (DC), PP, 10 mm, MKP4J022203C00KSSD

default S
front S
default L
front L
Order No.:  43D5932
Manufacturer:  Wima
Manufacturer SKU
MKP4J022203C00KSSD
MKP 4 0.022µF/630VDC 10% RM10
Manufacturer series:  MKP 4
EAN: 4099879818997
about the green icons

Active

Total price
( 0.3927 € * / pcs.)
3.93 €
Available: 1,926 pcs.
Next delivery: 3,000 pcs. on 2023-05-26
Quantity
Price per unit*
10 pcs.
0.3927 €
50 pcs.
0.3094 €
250 pcs.
0.2523 €
1000 pcs.
0.2237 €
2000 pcs.
0.1999 €
*incl. VAT plus shipping costs
Show 20 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Wima at Bürklin Elektronik

Film capacitor, MKP4J022203C00KSSD, WIMA

The MKP4J022203C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Very low dissipation factor
  • Negative capacitance change versus temperature
  • Very low dielectric absorption

Applications

  • Sample and hold
  • Timing
  • Oscillating circuits
  • High frequency coupling and decoupling

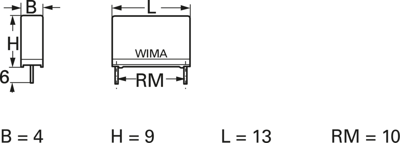

Technical specifications
Number of pins 2
Design radial
Width 4 mm
Dielectric material PP
Height 9 mm
Capacity 0.022 µF
Length 13 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (AC) 280 V
Rated voltage (DC) 630 V
Grid 10 mm
Tolerance ±10 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85322500
Original Packaging Bulk with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
