MKP4J032205D00KSSD | Wima
MKP film capacitor, 220 nF, ±10 %, 630 V (DC), PP, 22.5 mm, MKP4J032205D00KSSD
Order No.: 43D5938
EAN: 4099879819048
MPN:
MKP4J032205D00KSSD
MKP 4 0.22µF/630VDC 10% RM22.5
Series: MKP 4
Unit Price (€ / pc.)
1.9278 € *
Available: 327 pcs.
Available in 4 Days: 671 pcs. - if ordered today
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.2019 €
50 pcs.
1.0591 €
250 pcs.
0.9163 €
760 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4J032205D00KSSD, WIMA
The MKP4J032205D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications

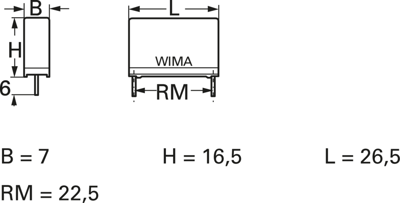

| Filter | Property | Value |
|---|---|---|
| Height | 16.5 mm | |
| Length | 26.5 mm | |
| Capacity | 220 nF | |
| Rated voltage (AC) | 280 V | |
| Rated voltage (DC) | 630 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| min. operating temperature | -55 °C | |
| Dielectric material | PP | |
| Width | 7 mm | |
| Design | radial | |
| Grid | 22.5 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 760 pieces |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
