MKP4J031504F00KSSD | Wima
MKP film capacitor, 150 nF, ±10 %, 630 V (DC), PP, 15 mm, MKP4J031504F00KSSD
Unit Price (€ / pc.)
0.8568 € *
Available in 4 Days: 3,461 pcs. - if ordered today
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.6069 €
100 pcs.
0.5236 €
500 pcs.
0.4522 €
1000 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

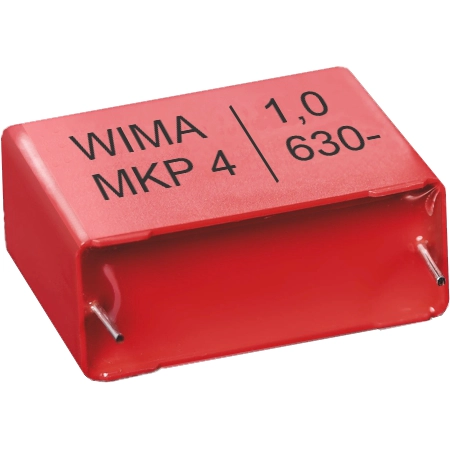

Film capacitor, MKP4J031504F00KSSD, WIMA
The MKP4J031504F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (DC) | 630 V | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 280 V | |
| max. operating temperature | 105 °C | |
| Grid | 15 mm | |
| Number of pins | 2 | |
| Height | 15 mm | |
| Tolerance | ±10 % | |
| Width | 8 mm | |
| Length | 18 mm | |
| Design | radial | |
| Capacity | 150 nF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
