MKP4J031004D00MSSD | Wima
MKP film capacitor, 100 nF, ±20 %, 630 V (DC), PP, 15 mm, MKP4J031004D00MSSD
Unit Price (€ / pc.)
0.3023 € *
Available in 4 Days: 3,000 pcs. - if ordered today

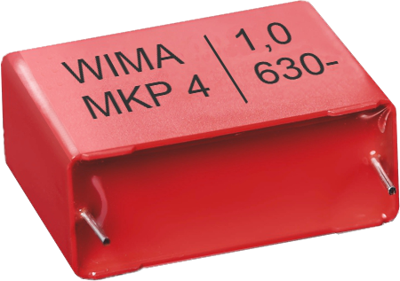

Film capacitor, MKP4J031004D00MSSD, WIMA
The MKP4J031004D00MSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

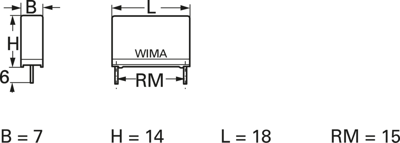

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 7 mm | |
| Rated voltage (AC) | 280 V | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Length | 18 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 14 mm | |
| Capacity | 100 nF | |
| Tolerance | ±20 % | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
