MKP4J024702F00KI00 | Wima
MKP film capacitor, 47 nF, ±10 %, 630 V (DC), PP, 7.5 mm, MKP4J024702F00KI00
Unit Price (€ / pc.)
0.2749 € *
Standard delivery time from the manufacturer is: 23 Weeks
Film capacitor, MKP4J024702F00KI00, WIMA
The MKP4J024702F00KI00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (DC) | 630 V | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 280 V | |
| max. operating temperature | 105 °C | |
| Grid | 7.5 mm | |
| Number of pins | 2 | |

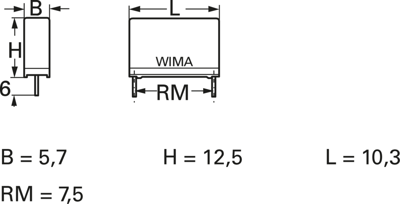

| Height | 12.5 mm | |
| Tolerance | ±10 % | |
| Width | 5.7 mm | |
| Length | 10.3 mm | |
| Design | radial | |
| Capacity | 47 nF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
