MKP1T022205B00KSSD | Wima
MKP film capacitor, 22 nF, ±10 %, 1.6 kV (DC), PP, 22.5 mm, MKP1T022205B00KSSD
Order No.: 43D772
EAN: 4099879819512
MPN:
MKP1T022205B00KSSD
MKP10022µF/1600VDC10%RM22.5
Series: MKP 10
Unit Price (€ / pc.)
1.4875 € *
Available: 198 pcs.
Available in 4 Days: 1,301 pcs.
Leadtime: 1 Week **
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4875 €
10 pcs.
0.9282 €
50 pcs.
0.8211 €
250 pcs.
0.7140 €
1000 pcs.
0.6188 €
*incl. VAT plus shipping costs
**Subject to prior sale

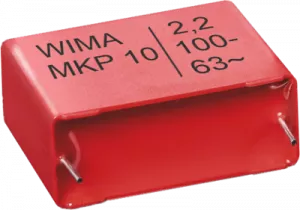

Film capacitor, MKP1T022205B00KSSD, WIMA
The MKP1T022205B00KSSD is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment
Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 6 mm | |
| Dielectric material | PP | |
| Height | 15 mm | |
| Capacity | 22 nF | |
| Length | 26.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 650 V | |
| Rated voltage (DC) | 1.6 kV | |
| Grid | 22.5 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
