FKP1O113304B00MF00 | Wima
FKP film capacitor, 3.3 nF, ±20 %, 1 kV (DC), PP, 15 mm, FKP1O113304B00MF00
Unit Price (€ / pc.)
0.4165 € *
Available in 4 Days: 3,600 pcs. - if ordered today
Film capacitor, FKP1O113304B00MF00, WIMA
The FKP1O113304B00MF00 is a pulse capacitor that was developed for extremly high pulse loads. This product has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces.
Features
- Self-healing
- Internal series connection
- Extremely high pulse duty
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- Converter in drives and power electronics
- Deflection systems in monitors and TV-sets
- Electronic ballasts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 15 mm | |
| Height | 11 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C | |
| Rated voltage (AC) | 600 V | |
| Rated voltage (DC) | 1 kV | |
| Tolerance | ±20 % | |
| Width | 5 mm | |
| Capacity | 3.3 nF | |
| Design | radial | |
| Length | 18 mm | |
| Number of pins | 2 | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |

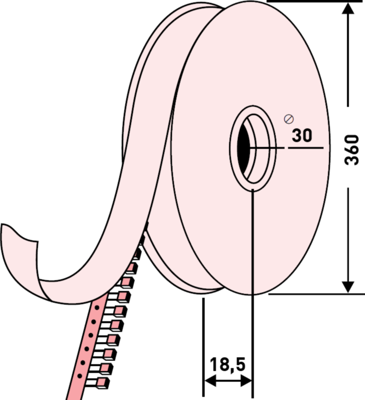

| Original Packaging | Reel with 600 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
