ZERO SMOG TL KIT1 WF TRICHTER 230V F/G | Weller
WELLER portable extraction unit set for up to 2 workstations, ZERO SMOG TL Kit1 FN
Order No.: 09L6132
EAN: 4099891404284
MPN:
ZERO SMOG TL KIT1 WF TRICHTER 230V F/G
FT91015699N
Series: ZERO SMOG
As an alternative, we recommend the following item:
WELLER solder fume extraction ZERO SMOG TL Kit 2 FN
Order No.: 09L6133
Manufacturer: Weller
per pc. 1,184.05 € *
*incl. VAT plus shipping costs

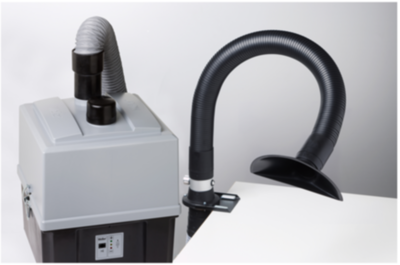

Fume extraction unit, FT91015699N, WELLER
The zero smog TL fume extraction system is specifically designed for continuous operation in industrial environments. Economical fume extraction system purifies air up to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench. The maintenance free brushless EC turbine provides continuous fume extraction.
Features
- Fine dust pre-filter F7 and H13 HEPA filter with exceptionally large 2.4m² filter surface for longer service life
- Variable speed settings to control suction to your specific needs
- Low noise emission levels for quiet workspace
- Automated filter change notification system
- Easily operated and easy filter replacement
Technical specifications
| Width | 330 mm | |
| Height | 445 mm | |
| Length | 335 mm | |
| Power | 120 W | |
| Sound pressure level | 50 db | |
| Voltage | 220-240 V | |
| Volume flow | 190 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84213925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
