2694170000 | Weidmüller

Through terminal block, push-in connection, 95 mm², 232 A, 8 kV, black/yellow, 2694170000

Order No.: 51P5988
EAN: 4064675266525
MPN:
2694170000
A2C 95/120 FE-DM
Series: A-Reihe

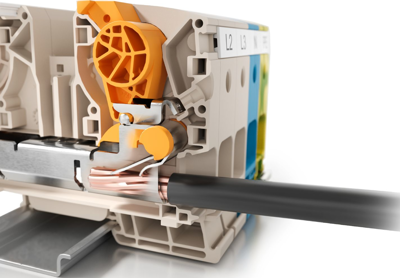

2694170000 Weidmüller Series Terminals Image 1

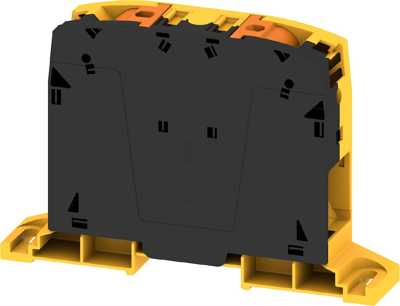

2694170000 Weidmüller Series Terminals Image 2

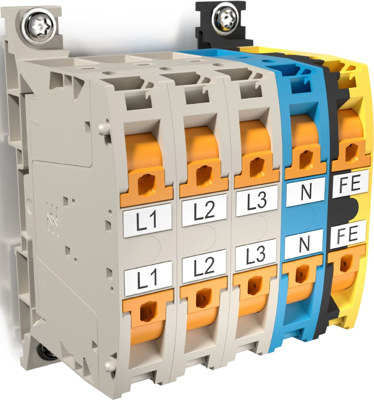

2694170000 Weidmüller Series Terminals Image 3
2694170000 Weidmüller Series Terminals Image 4
Image may differ
Unit Price (€ / pc.)
28.5362 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
28.54 € *
Price list
Quantity
Price per unit*
1 pcs.
28.5362 €
10 pcs.
26.7512 €
25 pcs.
25.1804 €
50 pcs.
23.7762 €
*incl. VAT plus shipping costs
Subject to prior sale

Feed-through terminal block, 2694170000, Weidmüller

Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures optimum conductivity.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection push-in connection
Rated current 232 A
Version through terminal block
Width 25 mm
Height 133.5 mm
AWG cross-section AWG 4 to 3/0
Degree of soiling 3
Rated surge voltage 8 kV
Colour black/yellow
Number of terminals 2
Length 90 mm
Cable cross-section 95 mm²
Logistics
Property Value
Country of origin RO
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
