1879710100 | Weidmüller
Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 1 m, PUR, black, 1.5 A, 1879710100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
35.8309 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
35.83 € *
Price list
Quantity
Price per unit*
1 pcs.
35.8309 €
5 pcs.
34.2006 €
10 pcs.
32.7131 €
25 pcs.
30.9281 €
*incl. VAT plus shipping costs
Subject to prior sale

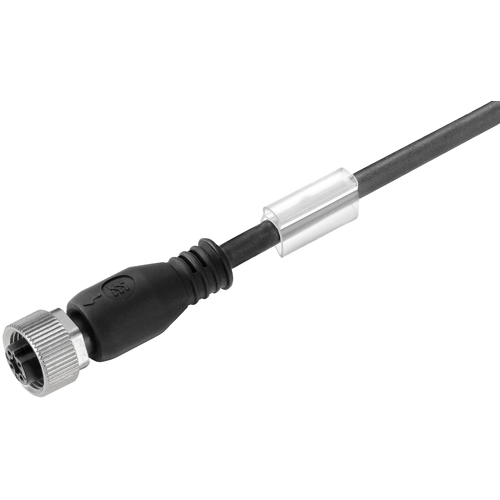

Sensor/actuator line, 1879710100, Weidmüller
Sensor/actuator cable is used for wiring a sensor and an actuator and for transmitting data or power in various applications. The moulded cable offers a connected and tested connection of the plug-in connector to the cable ex-works. The cable may be exposed to a wide range of conditions, such as humidity, dust, heat, cold, shock or vibration.

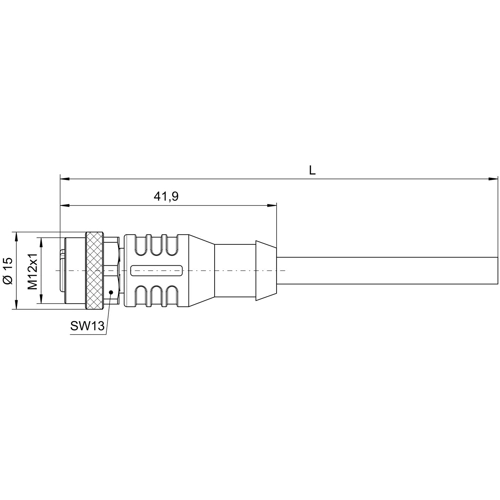

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 12 pole | |
| Cable length | 1 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67/IP65/IP66 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
