2865350000 | Weidmüller
Pin header, 11 pole, pitch 7.62 mm, angled, green, 2865350000
Order No.: 50P0534
EAN: 4064675600848
MPN:
2865350000
SL 7.62/11/90B 3.2SN GN BX
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.5819 €
50 pcs.
3.3439 €
100 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale

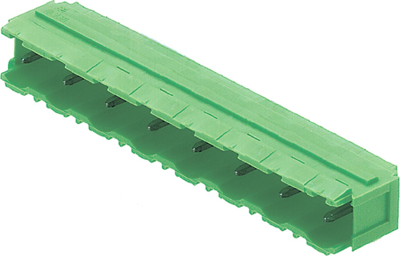

PCB plug-in connector, 2865350000, Weidmüller

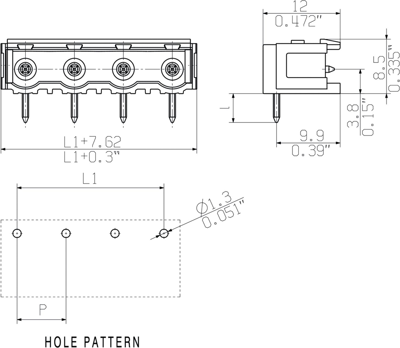

PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 7.62 mm, Number of poles: 11, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 800 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 11 pole | |
| Colour | green | |
| Version | pin header | |
| Rated current | 18.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
