1882720000 | Weidmüller

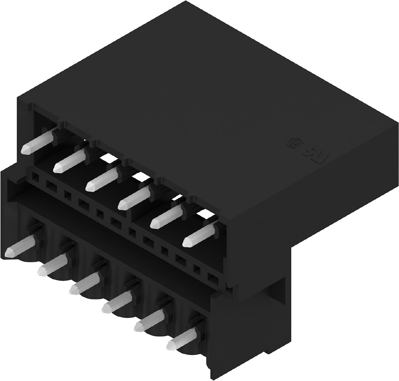

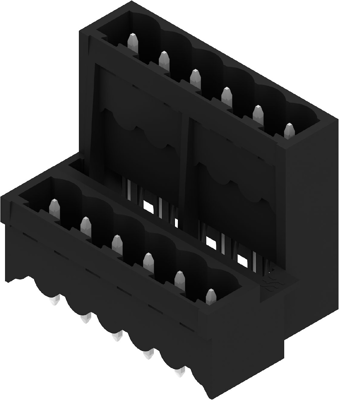

Pin header, 12 pole, pitch 5 mm, straight, black, 1882720000
Order No.: 50P4246
EAN: 4032248486298
MPN:
1882720000
SLDV-THR 5.00/12/180G 3.2SN BK BX
Unit Price (€ / pc.)
5.6287 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.63 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6287 €
10 pcs.
5.2479 €
50 pcs.
4.9147 €
100 pcs.
4.6172 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1882720000, WEIDMÜLLER
PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.00 mm, Number of poles: 12, 180°, Solder pin length (l): 3.2 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 12 pole | |
| Colour | black | |
| Version | pin header | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
